Features:

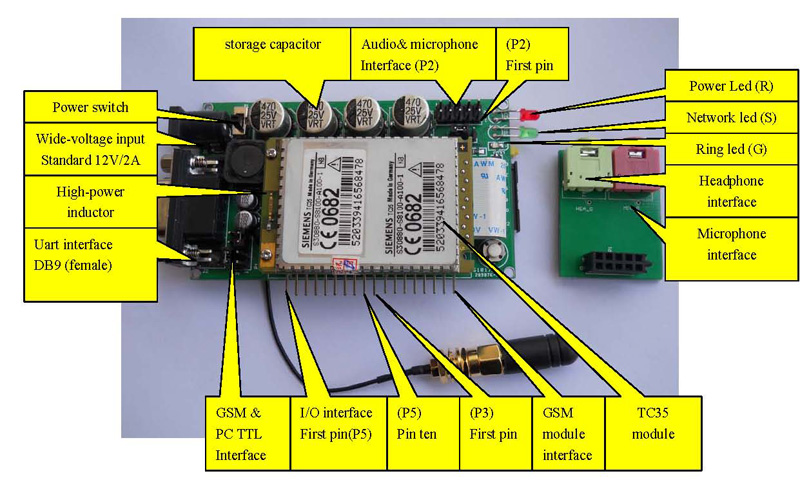

The SIEMENS TC35 Module is AT Command - controlled gsm modem, via Serial Port (RS232/TTL communication).
To Send/Read Text/PDU Message, Dial/Answer Phone Call .
Frequency bands: Dual Band EGSM 900 and GSM 1800 (GSM Phase 2+)
Power supply: DC 12V1A (Can also be wide voltage input 7-25V!)
Support Arduino!

Download list:
Schematic of main board Protel Schematic_tc35.pdf
Schematic of Voice/Audio adapter Protel Schematic_AUDIO.pdf
SIEMENS TC35 of hardware TC35_hd.rar
AT Command Reference Manual tc35_AT.rar
MCU Source code GSM_KEIL2_51microchip.rar

Package list:
GSM GPRS URAT/232 Development Board x1
SIEMENS TC35 module x1
GSM Special Antenna x1
Voice/Audio adapter x1

Power adapter DC 12V1A x1

Serial line x1

E-mail sent 500M data x1

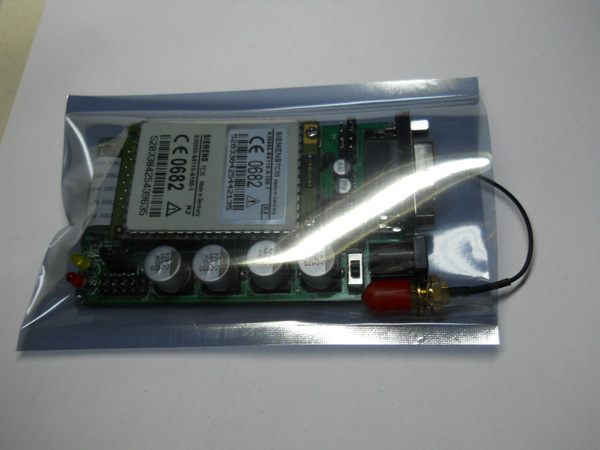

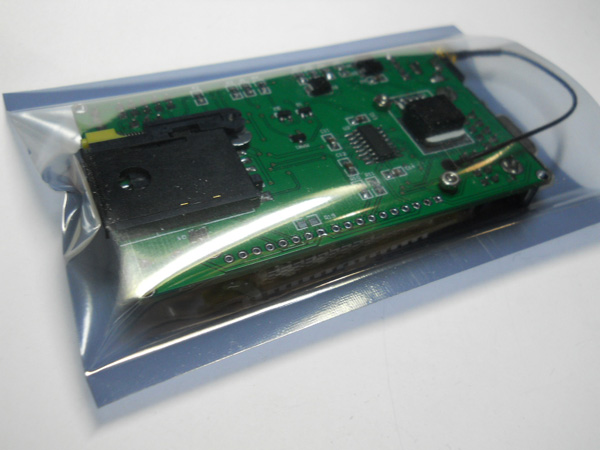

following Pictures

with Highest Protection!
1) High Quality Antistatic Bag
2) Thick Bubble Bags
3) Waterproof Address Label (Print Version) to avoid mistakes made by handwriting. (More accurate delivery)
4) All products are well packed after We are completely tested.

Special Offer!

Click me to see the detail of Version3.

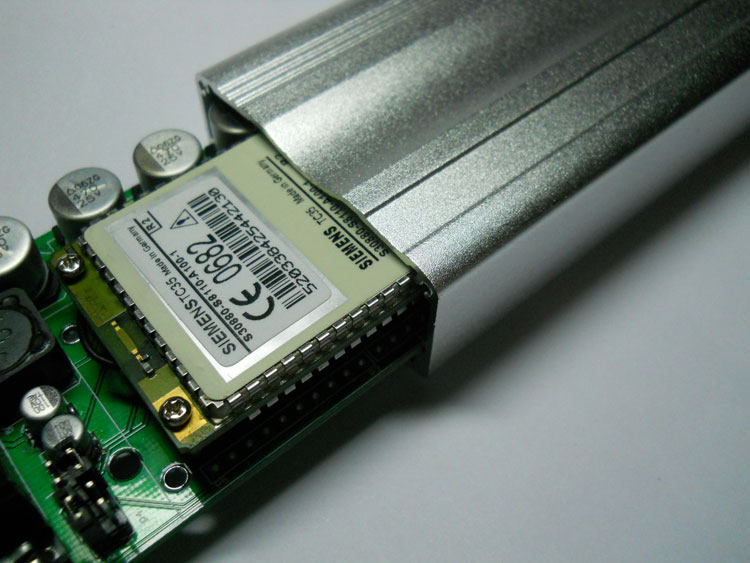

Our board can also be loaded into the metal box, more beautiful and practical,
