    Arduino GSM&GPRS SIEMENS MC52I Module Board RS232 UART Serial + Voice adapter







    Arduino GSM&GPRS SIEMENS MC52I Module Board RS232 UART Serial + Voice adapter

    Registered Air Mail with Tracking Number

    7 days Money Back Guarantee *see return policy










    Features:
    The SIEMENS MC52I Module is AT Command - controlled gsm gprs modem, via Serial Port (RS232/TTL communication).
    To Send/Read Text/PDU Message, Dial/Answer Phone Call .
    Frequency bands: Dual Band EGSM 900 and GSM 1800 (GSM Phase 2+)
    Power supply: DC 12V1A (Can also be wide voltage input 7-25V!)
    Support GPRS, with TCP IP and computer data transmission via TCP or UDP
    Support Arduino!
    Download list:
    Schematic of main board Protel Schematic_MC52I.pdf
    Schematic of Voice/Audio adapter Protel Schematic_AUDIO.pdf
    SIEMENS MC52I of hardware mc52i_hd.rar
    AT Command Reference Manual mc52i_at.rar

    Package list:
    GSM GPRS  URAT/232 Development Board x1
    SIEMENS MC52I module x1
    GSM Special Antenna x1

    Voice/Audio adapter x1

    Power adapter DC 12V1A x1

    Serial line x1

    E-mail sent 500M data x1



    with Highest Protection!
    1) High Quality Antistatic Bag
    2) Thick Bubble Bags
    3) Waterproof Address Label (Print Version) to avoid mistakes made by handwriting. (More accurate delivery)
    4) All products are well packed after We are completely tested.

    Special Offer!
    Click me to see the detail of Version3.



    Our board can also be loaded into the metal box[need add $5], more beautiful and practical,

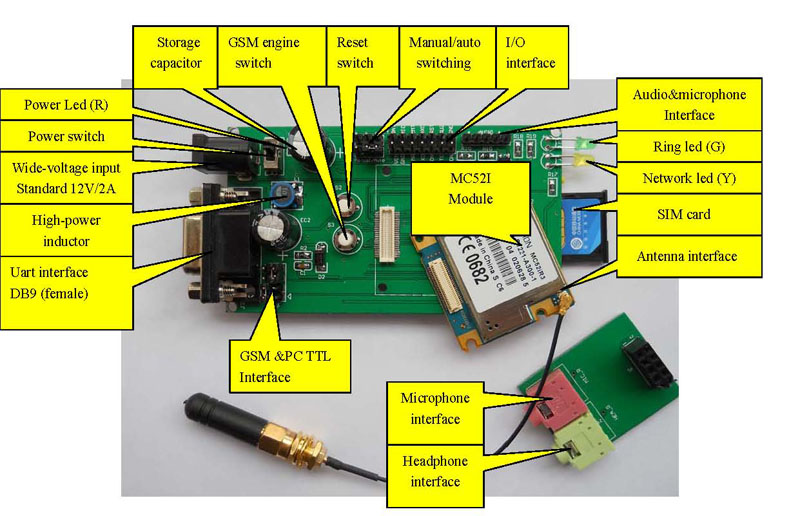

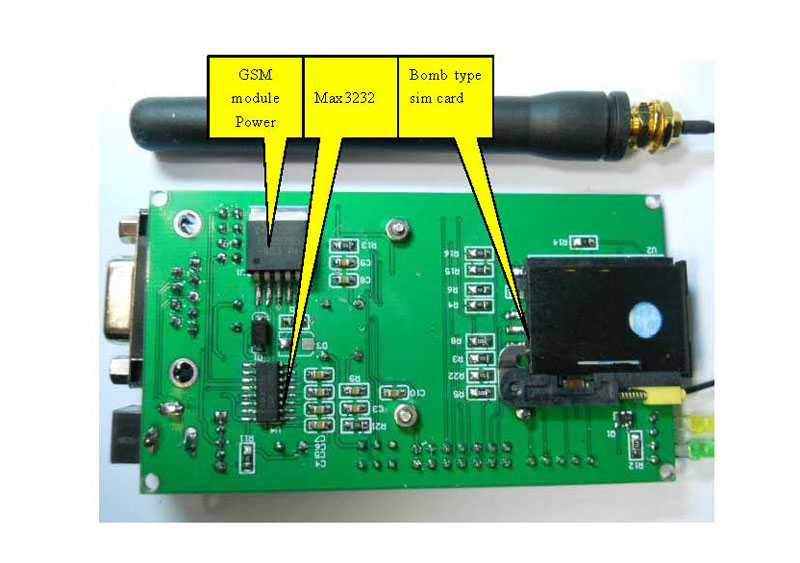

    following Pictures
